ADDITIONAL FEATURES TO BOOST YOUR EFFICIENCY from Exfo and Fibercom Technologies

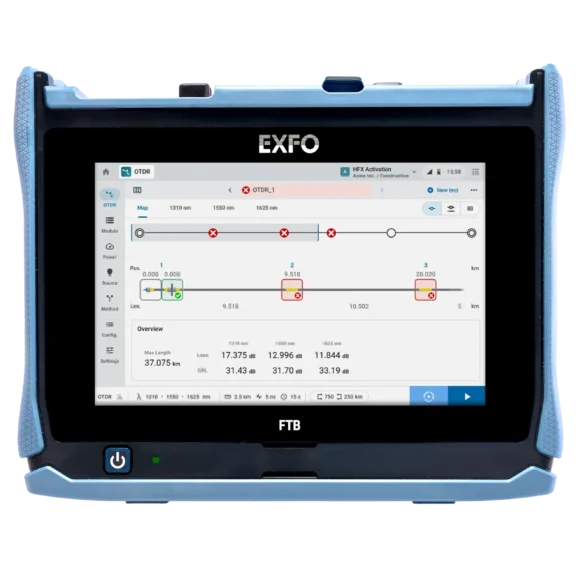

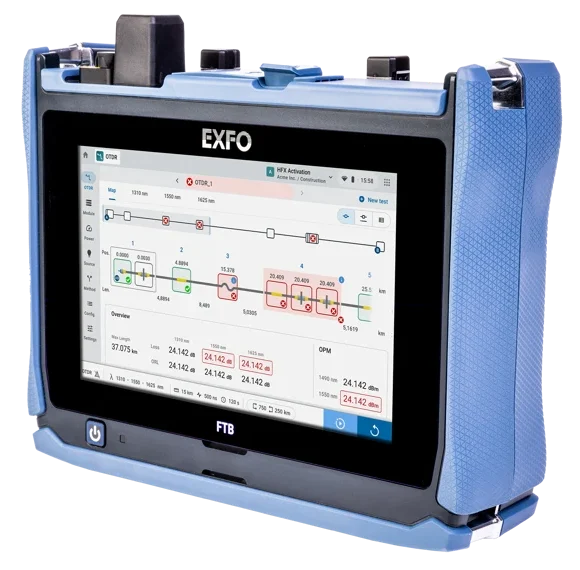

iOLM Advanced (iADV)–Real-time test results
Activate the OTDR laser in continuous shooting mode directly from the iOLM interface to get a quick view of the fiber under test,
locate the distance to a break, monitor field splicing, or identify obvious impairments.
SWAP-OUT CONNECTOR

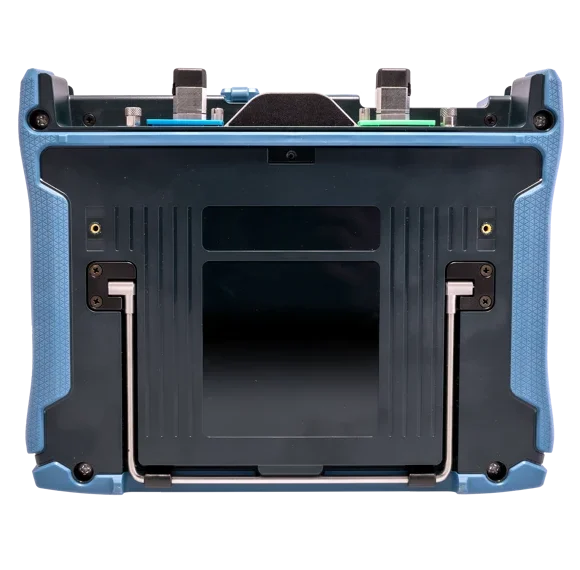

The FTB Lite 720D OTDR Series comes with a patented Swap-Out connector that you can easily replace when you need to.
Maintain top optical performance, no downtime.
Worn connectors impact optical performance and may
cause inaccuracies. Replace connectors right in the field
without needing to return the unit to the manufacturer or
spend money on repairs.
Keep your calibration plan on track.
Your calibration date remains the same, even after you swap
the connector. There’s no need to calibrate your unit sooner
than planned.
Replace the connector only when necessary.
The built-in connector health checker runs a diagnosis of
the optical port so you can replace worn connectors in the
field when you need to.
OPTICAL ADD-ONS (OPTIONAL)
Optical power meter (OPM)
EXFO’s high-level power meter (GeX) can measure up to 27 dBm. This is essential for hybrid fiber-coaxial (HFC) networks or
high‑power signals. If used with an auto-lambda/auto-switching compatible light source, the power meter automatically synchronizes
on the same wavelength, thus avoiding any risk of mismatched measurement.
Visual fault locator (VFL)
The plug-and-play VFL easily identifies breaks, bends, faulty connectors and splices, in addition to other causes of signal loss.
This basic, yet essential troubleshooting tool should be part of every field technician’s toolbox. The VFL visually locates and detects
faults over distances of up to 7 km by creating a bright-red glow at the exact location of the fault. High‑power VFL is also available
as an option to test distances up to 12 km.
ENCIRCLED FLUX (EF) COMPLIANT
For multimode fibers, the EF standard (as recommended in TIA568 via TIA52614B and
IEC 6128041 Ed. 2.0) is a way of controlling source launch conditions so that Tier‑2
troubleshooting can be performed with maximum accuracy and consistency. The FTB Lite 720D is compatible with an external launch mode conditioner that is EF compliant.
Availability: In Stock
EXFO’s FTB Lite 700 Series from Fibercom Technologies Freetown Branch features always-on mobile connectivity, designed to solve issues, such as lack of compliance and
expertise, inefficient processes, and delays in getting the latest updates.
Always-on mobile connectivity provides:
1. Streamlined compliance and automated validation: Automated job tracking and real-time reporting confirm adherence to methods of
procedure (MoP) ensure compliance with testing standards while reducing errors and administration time.
2. Enhanced collaboration and efficiency: Real-time data sharing, automated uploads, and cloud-based reporting enable seamless
teamwork, faster decision-making, and accelerated project timelines.
