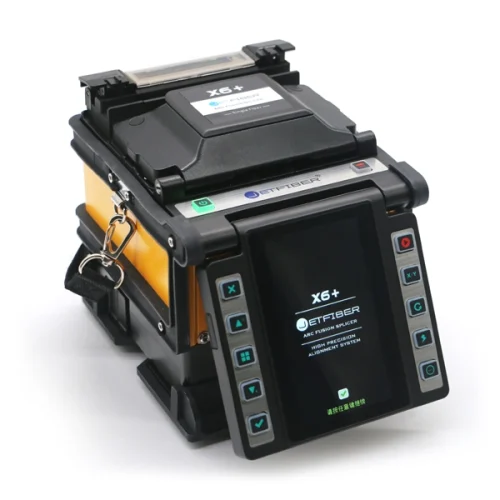

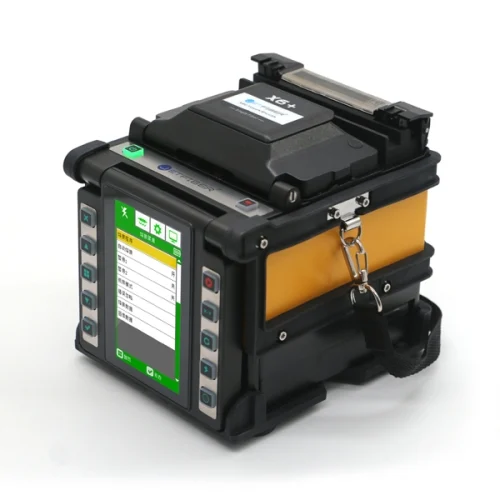

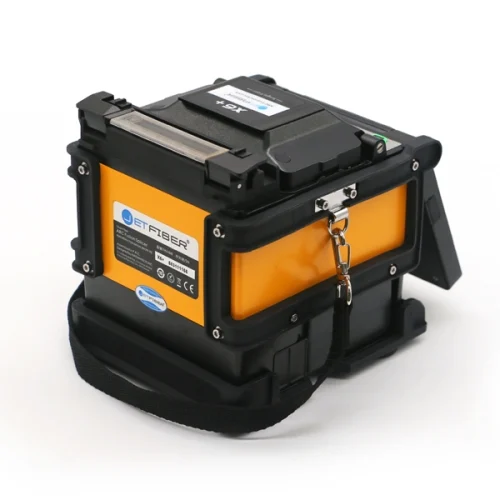

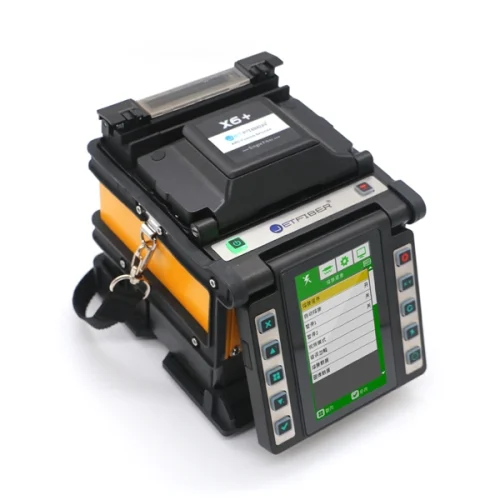

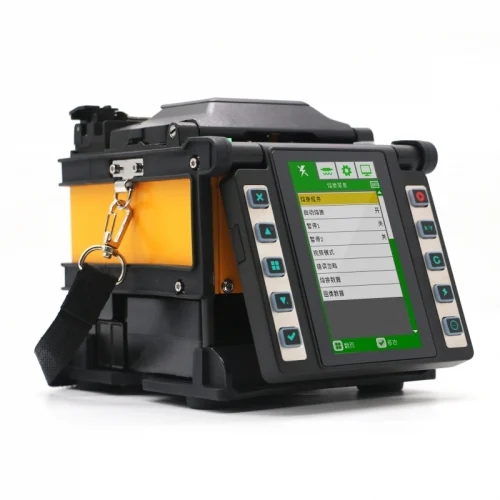

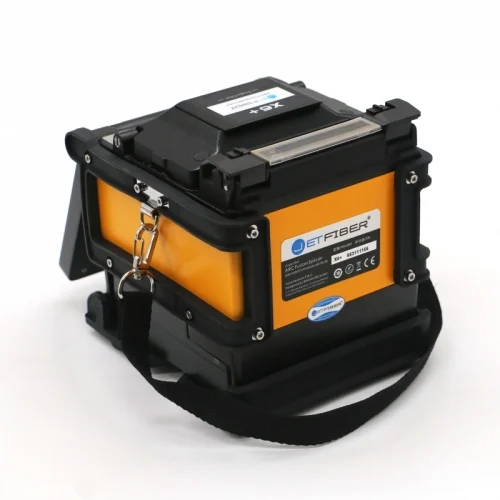

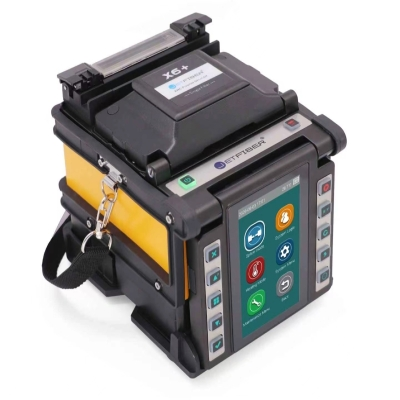

The X6+ Optical Fiber Fusion Splicer is a fast, high-precision fiber welding machine designed for FTTH, FTTB, and network installation projects. Equipped with a 6-motor core-to-core alignment system, it delivers highly accurate splicing with ultra-low splice loss. The X6+ performs splicing in as little as 6 seconds and heats protective sleeves in 8–12 seconds, ensuring maximum efficiency on-site. Built with a rugged design and a 8400 mAh high-capacity battery, it supports more than 450 splice and heat cycles, making it ideal for field engineers who need reliability, durability, and long operation time
Availability: In Stock
The X6+ is a high-performance optical fiber fusion splicer designed for fast and precise fiber welding. It features 6-motor core alignment technology for accurate positioning and stable splicing results. In SM–SM fast mode, splicing is completed in 6 seconds, and in auto mode within 10 seconds. The built-in heater seals the splice in just 12 seconds. Powered by an 8400 mAh high-capacity battery, it supports extended field operations without frequent recharging.
Size & Weight
D156 × W140 × H150 (mm), 2.0 kg (2.5 kg with battery)
Motors
High precision 6 motors
Fiber Alignment
Core-to-core alignment
Holder Type
Multi-functional fiber holder, compatible with bare fiber, drop cable, and patch cord
Applicable Fibers
SM (ITU-T G.652)
EB (ITU-T G.654)
MM (ITU-T G.651)
DS (ITU-T G.653)
NZ/NZDS (ITU-T G.655)
BI (ITU-T G.657)
Fiber Diameter
Cladding: 80–150 µm
Coating: 100–3000 µm
Cleave Length
5–16 mm
Splice Mode
Max. 200
Splicing Time
6 sec. [SM Fast] program
10 sec. [SM G.652] program
Heating Mode
Max. 30
Heating Time
Adjustable
8 sec. with micro sleeves
12 sec. with slim 60 mm and 40 mm sleeves
Splice Protector
10–60 mm
Splice Image Capture
Max. 800
Splice Data Storage
Max. 20,000
Splice Loss
SM: 0.01 dB
EB: 0.02 dB
MM: 0.01 dB
DS: 0.02 dB
NZ/NZDS: 0.02 dB
BI: 0.02 dB
Return Loss
≥ 60 dB
Loss Estimation
Provided
Operation Conditions
Altitude: 0–5000 m
Humidity: 0–95%
Temperature: −20°C to +50°C
Wind velocity: up to 15 m/s
Storage Conditions
Humidity: 0–95%
Temperature: −40°C to +80°C
Battery storage: −20°C to +40°C
Tension
1.96–2.25 N
Screen
4.3-inch high-light color touch screen
Magnification
400× for X & Y dual-axis view
800× for X or Y single-axis view (zoom up)
Electrode Life
5000 splices
Power Supply
AC 100–240 V, 50/60 Hz
Battery Capacity
8400 mAh high-capacity battery
Supports more than 450 splicing and heating cycles
