Key Features

Core Alignment Technology: Ensures precise fiber alignment for minimal splice loss
High-Resolution Display: 4.3″ color touch screen with 650x magnification
Long Battery Life: 4000mAh battery supporting 240+ splice cycles
Fast Splicing: 5-second splice time with SM Fast program
Versatile Compatibility: Supports multiple fiber types (SM, MM, DS, NZ/NZDS, BI)
Robust Design: Operating temperature range -20°C to +50°C
Complete Package: Includes all essential accessories for field operations

Availability: In Stock

Fiber Optic Splicer Product Description

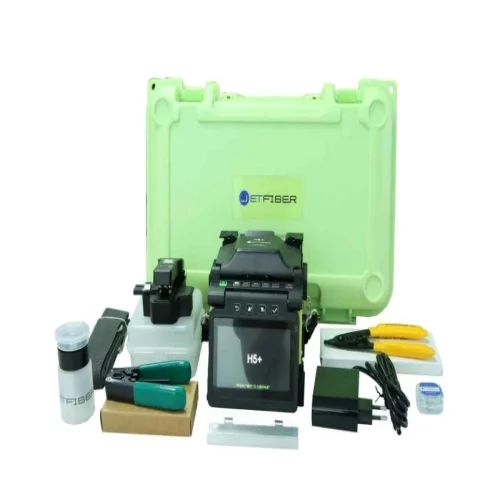

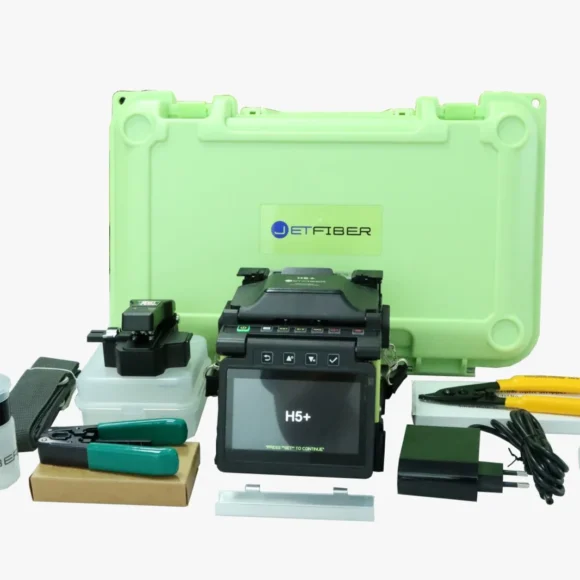

Item	Description

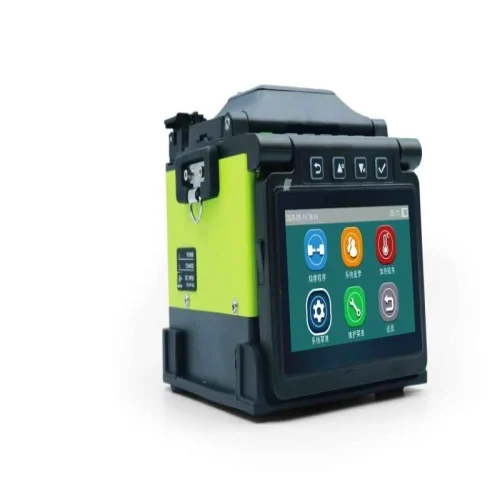

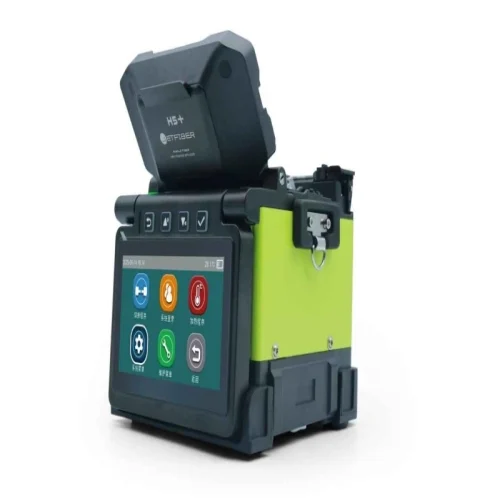

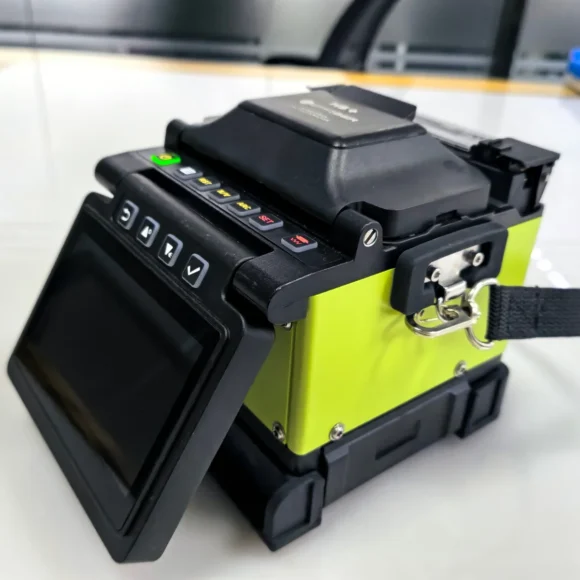

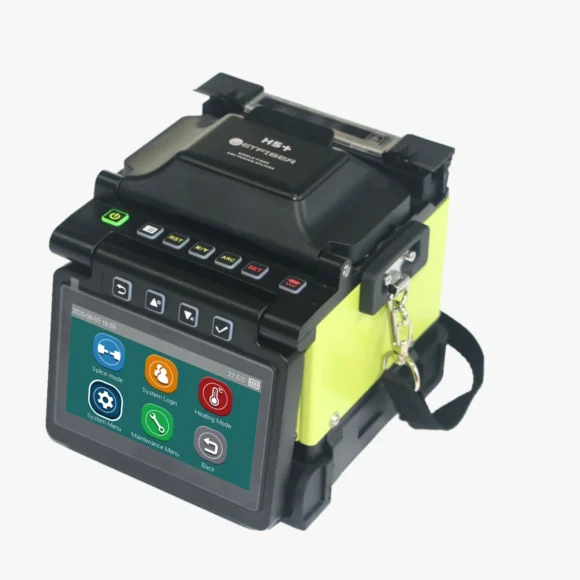

Fusion splicer HS+	Core splicing unit
High capacity battery JF-BA108	Long-lasting power source
Extra electrodes	Replacement electrodes
One step cleaver JF-60	Precision fiber cutting tool
Carrying case	Protective transport case
Soft Case Work Table* (Optional)	Portable work surface
Cooling tray	Heat dissipation accessory
AC adapter	Power supply unit
Hand strap	Carrying convenience
Stripper CFS-2	Fiber stripping tool
Drop cable stripper	Specialized stripping tool
Alcohol bottle	Cleaning solution

*Specifications and descriptions are subject to change without prior notice.

Parameter	Specification
Size & Weight	136×141×136(mm) 1.5kg (1.8kg with battery)
Fiber alignment	Core Alignment
Holder type	Multi-functional fiber holder compatible: bare fiber, drop cable, pigtail
Fiber type	SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-TG.655), BI(ITU-T G.657)
Fiber diameter	Cladding diameter 80~150μm, coating 100~1000μm
Cleave length	250μm cladding diameter 5~16mm, over 250μm cladding diameter 16mm
Splicing mode	Max.100
Splicing time	5 sec. (SM Fast) program
Heating mode	Max.30
Heating time	Typical 12 sec. (Adjustable)
Splice protector	10~60mm
Splice image capture	Max.300
Splice date storage	Max.20000
Splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss	>>60dB
Loss estimation	Provided
Operation condition	Altitude 0~5000m, Humidity 0~95%, Temperature -20~50℃, Wind velocity up to 15m/s
Storage condition	Humidity 0~95%, Temperature -40~+80℃, (Battery -20~+40℃)
Tension	2N

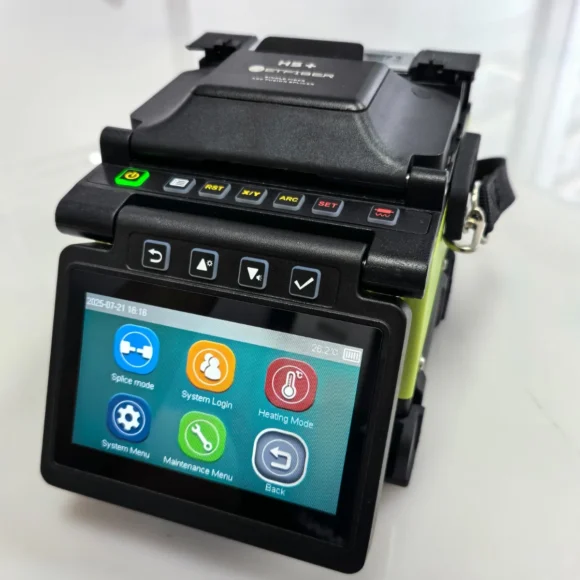

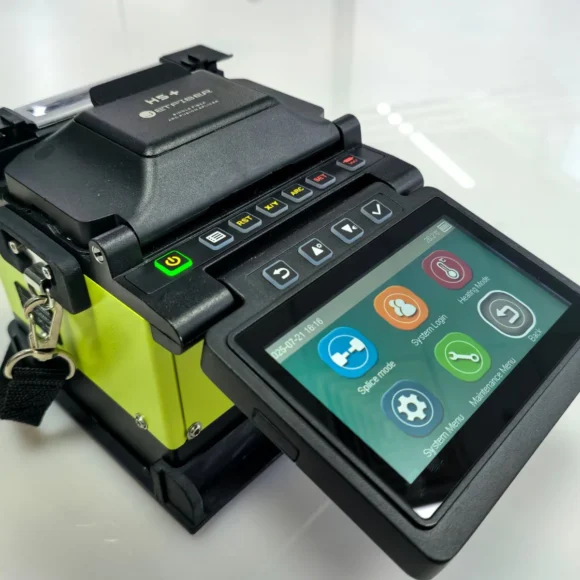

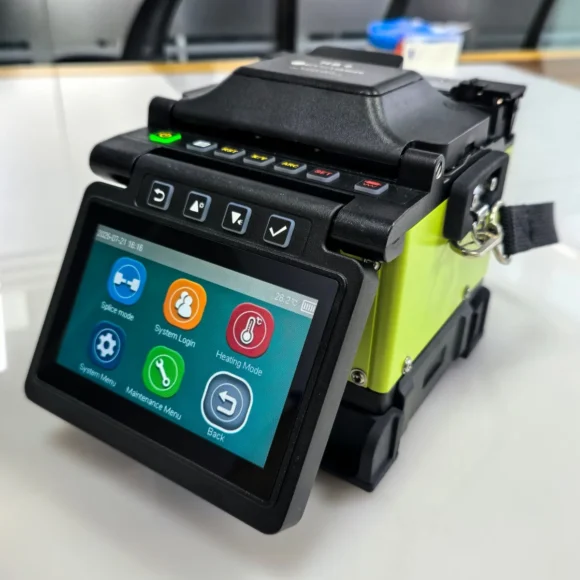

Fiber view	Two 650x cameras observation, 4.3 inch high-light color touch screen
Fiber magnification	650x for X or Y single axis view, 280x both X& Y dual axis view
Port	High speed USB
Electrode life	5000 Splices
Power supply	AC100-240V, 50/60Hz
Battery parameters	4000mAh High capacity battery, more than 240 splice & heat cycles (Full charge within 3 hours)
