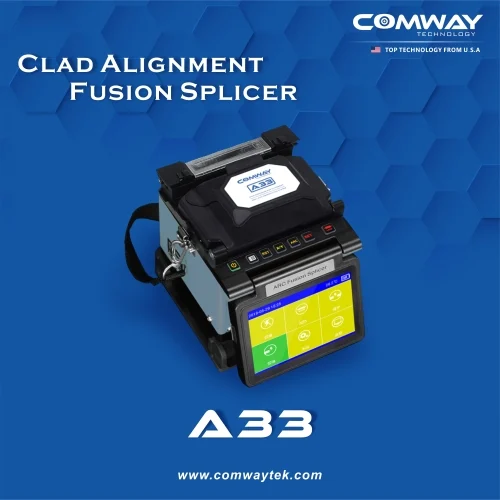

COMWAY A33 Fusion Splicer

• 4.3 inchTouch screen
• 5 secSplicing time
• 15 SecHeating time
• 5000 coresElectode life





Specifications

Size & Weight

• D136 × W141 × H136 (mm), 1.5 kg (1.8 kg with battery)

Fiber Alignment

• High Precision PAS Alignment

Fiber Type

• SM (ITU-T G.652)

• MM (ITU-T G.651)

• DS (ITU-T G.653)

• NZ/NZDS (ITU-T G.655)

• BI (ITU-T G.657)

Splice Mode

• Single fiber

Fiber Diameter

• Cladding diameter: 80–150 µm

• Coating diameter: 100–3000 µm

Cleave Length

• 250 µm cladding diameter: 5–16 mm

• Over 250 µm cladding diameter: 16 mm

Splicing Programs

• Max. 100

Splicing Time

• 5 sec. [SM Fast] program

• 12 sec. [SM G652] program

Heating Programs

• Max. 30

Heating Time

• Adjustable; 15 sec. with slim 60 mm and 40 mm sleeves

Splice Protector

• 10–60 mm

Splice Image Capture

• Max. 300, automatic cycle storage

Splice Data Storage

• Max. 20,000

Splice Loss

• SM: 0.02 dB

• MM: 0.01 dB

• DS: 0.04 dB

• NZ/NZDS: 0.04 dB

• BI: 0.02 dB

Return Loss

• ≥ 60 dB

Loss Estimation

• Provided

Operating Conditions

• Altitude: 0–5000 m

• Humidity: 0–95%

• Temperature: −10°C to +50°C

• Wind velocity: up to 15 m/s

Storage Conditions

• Humidity: 0–95%

• Temperature: −40°C to +80°C

• Battery storage: −20°C to +40°C

Tension

• 2 N

Fiber View

• 4.3-inch high-light color touch screen

Fiber Magnification

• 500× for X or Y single axis view

• 300× for both X & Y dual-axis view (zoom up)

Port

• High-speed USB

Electrode Life

• 5000 arc discharges

Power Supply

• AC 100–240 V, 50/60 Hz

Battery Parameters

• 4000 mAh high-capacity battery

• Supports more than 240 splice and heating cycles
