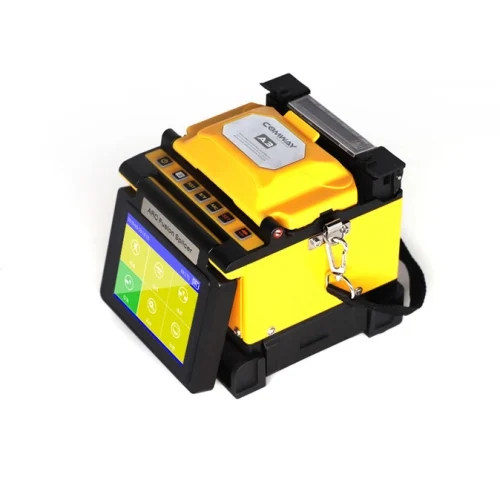

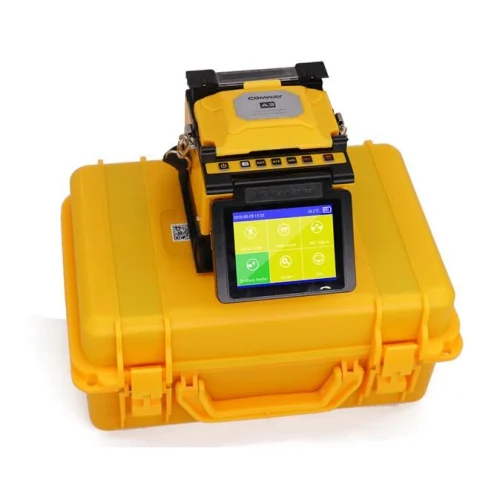

This high-precision fiber fusion splicer is designed for fast, reliable, and efficient fiber optic splicing in field or lab environments. Featuring PAS alignment technology, it delivers low splice loss and consistent performance. With a 5-second splice time and 15-second heating cycle, it maximizes productivity on every job. Built to withstand dust, rain, wind, and shocks, it is ideal for telecom engineers, FTTH installations, network maintenance, and emergency repairs. The unit includes a high-capacity battery supporting over 240 splice-and-heat cycles per charge, automatic fiber type detection, and easy electrode replacement—making it a durable and dependable tool for all fiber projects.
Availability: In Stock
High-precision PAS alignment system
Ultra-fast performance: 5-second splicing and 15-second heating time
Quick start with fast boot technology
Capable of over 240 splice and heat cycles on a single charge
Designed to withstand dust, rain, wind, and shock
Automatic fiber type detection and auto-splicing mode

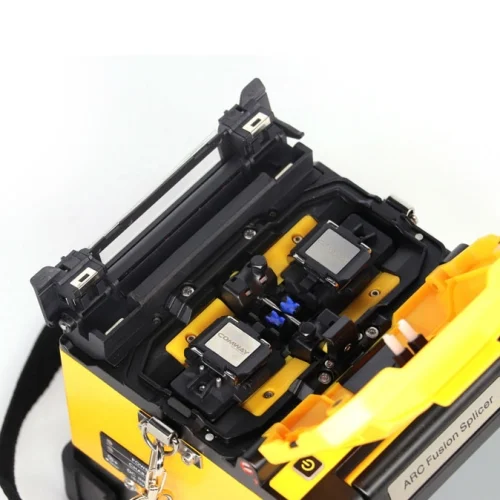

Easy replacement of electrodes and fiber holder
Size & Weight
D136 × W135 × H136 (mm), 1.5 kg (1.8 kg with battery)
Fiber Alignment
High-precision PAS Alignment
Fiber Type
SM (ITU-T G.652)
MM (ITU-T G.651)
DS (ITU-T G.653)
NZ/NZDS (ITU-T G.655)
BI (ITU-T G.657)
Splice Mode
Single fiber
Fiber Diameter
Cladding diameter: 80–150 µm
Coating diameter: 100–1000 µm
Cleave Length
250 µm cladding diameter: 8–16 mm
Over 250 µm cladding diameter: 16 mm
Splicing Programs
Max. 100
Splicing Time
5 seconds (SM Fast program)
Heating Programs
Max. 30
Heating Time
Typical 15 seconds (Adjustable)
Splice Protector Length
10–60 mm
Splice Image Capture
Max. 300 images
Splice Data Storage
Max. 20,000 records
Splice Loss
SM: 0.02 dB
MM: 0.01 dB
DS: 0.04 dB
NZ/NZDS: 0.04 dB
BI: 0.02 dB
Return Loss
60 dB
Fiber View
Two 300× camera observation
4.1-inch high-brightness color display
Operation Conditions
Altitude: 0–5000 m
Humidity: 0–95%
Temperature: −20°C to +50°C
Wind resistance: up to 15 m/s
Storage Conditions
Humidity: 0–95%
Temperature: −40°C to +80°C
(Battery storage: −20°C to +40°C)
Fiber Magnification
300× (X or Y single-axis view)
150× (X & Y dual-axis view)
Battery Parameters
4000 mAh high-capacity battery
Supports more than 240 splice + heat cycles per charge
Port
High-speed USB
Electrode Life
5000 arc discharges
Power Supply
AC 100–240V, 50/60 Hz
